Software

Tools that save engineering hours

Alongside our engineering services we develop practical software for engineering teams — tools that take the repetitive work out of CAD clean-up and revision checking, so engineers can spend their time on engineering.

  • Desktop application

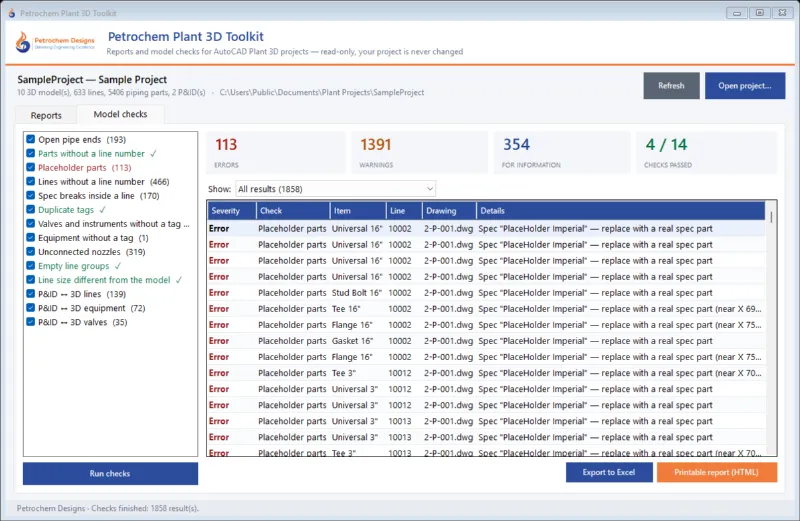

    Petrochem Plant 3D Toolkit

    Line lists, MTOs, model checks and batch isometrics for AutoCAD Plant 3D — in one click.

    Reads the Plant 3D project database for 13 Excel reports and 14 model checks, and drives Plant 3D to create production isometrics and PCF files for many lines in one run.

    • Version 1.2.0
    • AutoCAD Plant 3D projects · Windows 10 / 11
  • Plant 3D add-in · Early access

    Petrochem P&ID Converter

    Turn plain AutoCAD P&IDs into intelligent AutoCAD Plant 3D P&IDs — symbols, lines and tags.

    Scans an AutoCAD P&ID, matches its blocks and layers to Plant 3D classes, and creates real Plant 3D lines, symbols and tags in a new project P&ID. Early access.

    • Version 1.0 (early access)
    • AutoCAD Plant 3D 2027 · Windows 10 / 11
  • AutoCAD & Plant 3D utility

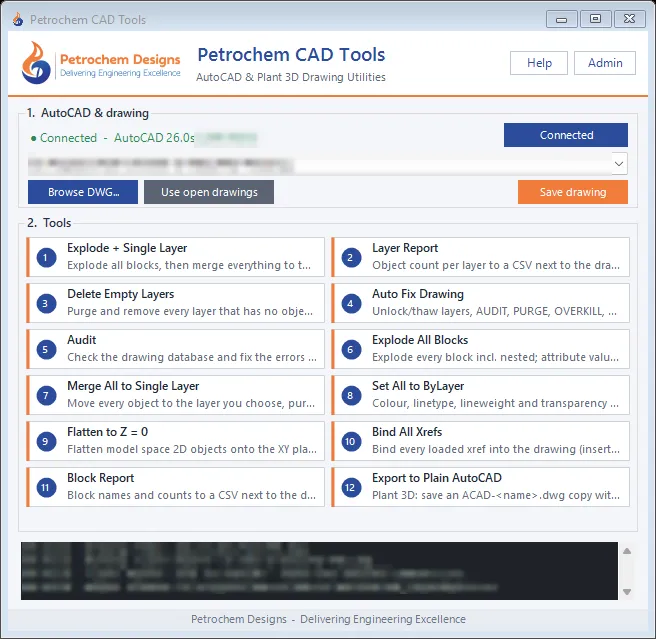

    Petrochem CAD Tools

    AutoCAD & Plant 3D drawing clean-up — one click per routine

    Petrochem CAD Tools puts the drawing clean-up routines our engineering team uses most into one small window. It starts AutoCAD or AutoCAD Plant 3D, opens the drawing you choose and runs the selected routine on it with one click — no LISP files to load and no commands to type.

    • Version 2.2.0
    • AutoCAD, AutoCAD Plant 3D and other AutoCAD-based products 2020 or later · Windows 10 / 11
  • PDF revision comparison

    Petrochem Drawing Compare

    Compare two PDF revisions — cloud every change — get a change report

    Petrochem Drawing Compare finds every difference between two revisions of a PDF and shows them the way a checker would: numbered revision clouds on the new revision, overlay sheets, and a change list that says in words what changed — for P&IDs, GA drawings, isometrics, vendor drawings, MTOs and specifications.

    • Version 1.1.0
    • Windows desktop application · works directly on PDF files
